Why a factory visit is worth the trip

You can read a spec sheet in minutes. What a visit adds is proof: the condition of the line, how the team handles materials, and whether the QC bench is real or just for show. It’s also the fastest way to align on a custom belt — bring a sample or a drawing and you can walk the build process with the people who would actually make it.

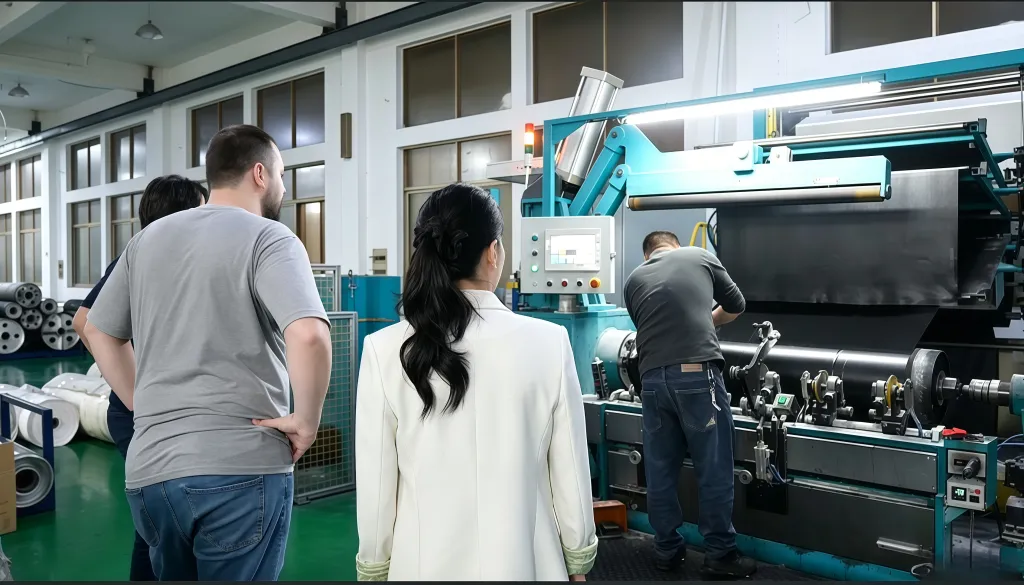

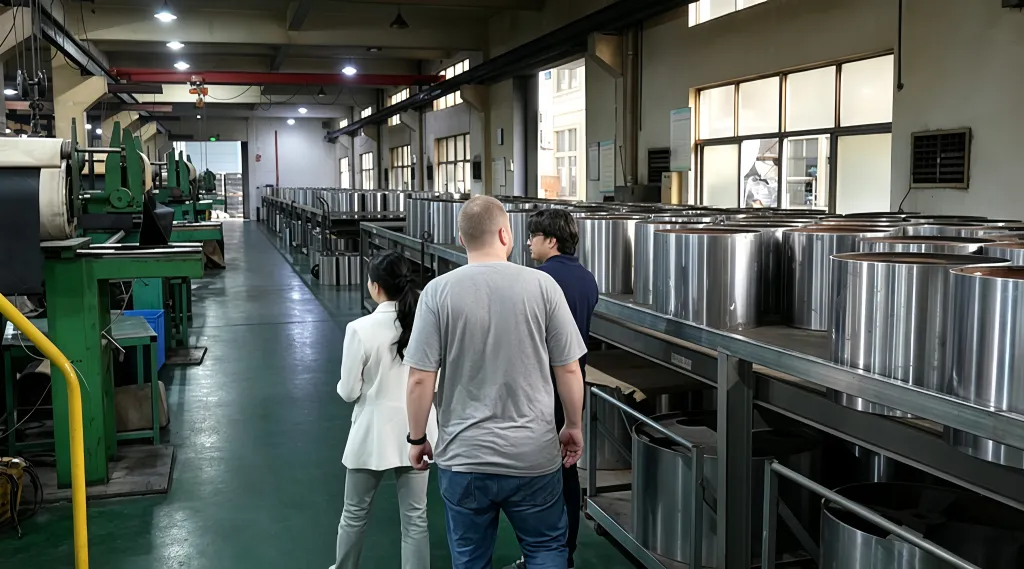

What the workshop tour covers

A typical visit walks through six stations. The order can shift, but these are the ones that matter.

1. Raw material and compounding

It starts with the rubber. Most of our automotive and industrial belts use EPDM or chloroprene (CR) as the base polymer, mixed with carbon black, oils, and curing agents in a Banbury-style internal mixer. The aim is even dispersion — a stray clump is a future failure point. The tensile cords (polyester, aramid, or glass fiber) are treated with an RFL adhesive so they bond to the rubber instead of sliding inside it. This step decides how much load a belt can carry without stretching.

2. Belt building and extrusion

The treated cords are laid into the rubber compound and the profile is formed — extruded for V-ribs, built up in layers for wrapped V-belts, or wound onto a mandrel for timing belts. Dimensional control here sets the final fit in the pulley groove.

3. Vulcanization (curing)

The green belts go into curing presses under heat and pressure. This cross-links the rubber and locks in the shape — the V-angle on a V-belt, the teeth on a timing belt. Temperature, pressure, and time are held to tight windows; small drift shows up later as noise or early wear.

4. Grinding, cutting, and trimming

After curing, sleeves are cooled and ground to the exact profile, then cut to width and length. Diamond tooling keeps edges clean so the belt runs quiet and sits true in the groove.

5. Inspection and testing

This is the station buyers should watch longest. Beyond a visual check, belts are pulled on a tensile tester, measured for length and pitch (timing-belt teeth are checked against the mold with optical projection), and run on fatigue and noise rigs. Lines are built to standards such as ISO 5292, ISO 1813, and RMA IP-20, and every batch carries traceability back to its raw materials.

6. Packaging

Finished belts are marked with size and batch code, then packed for the channel — bulk for distributors, branded or neutral for OEM.

The belts we make

KingPower builds drive belts for both automotive and industrial use:

• Poly-V / ribbed belts — multi-ribbed serpentine belts for accessory drives.
• V-belts and cogged V-belts — classical and narrow profiles, cogged for tighter bends.

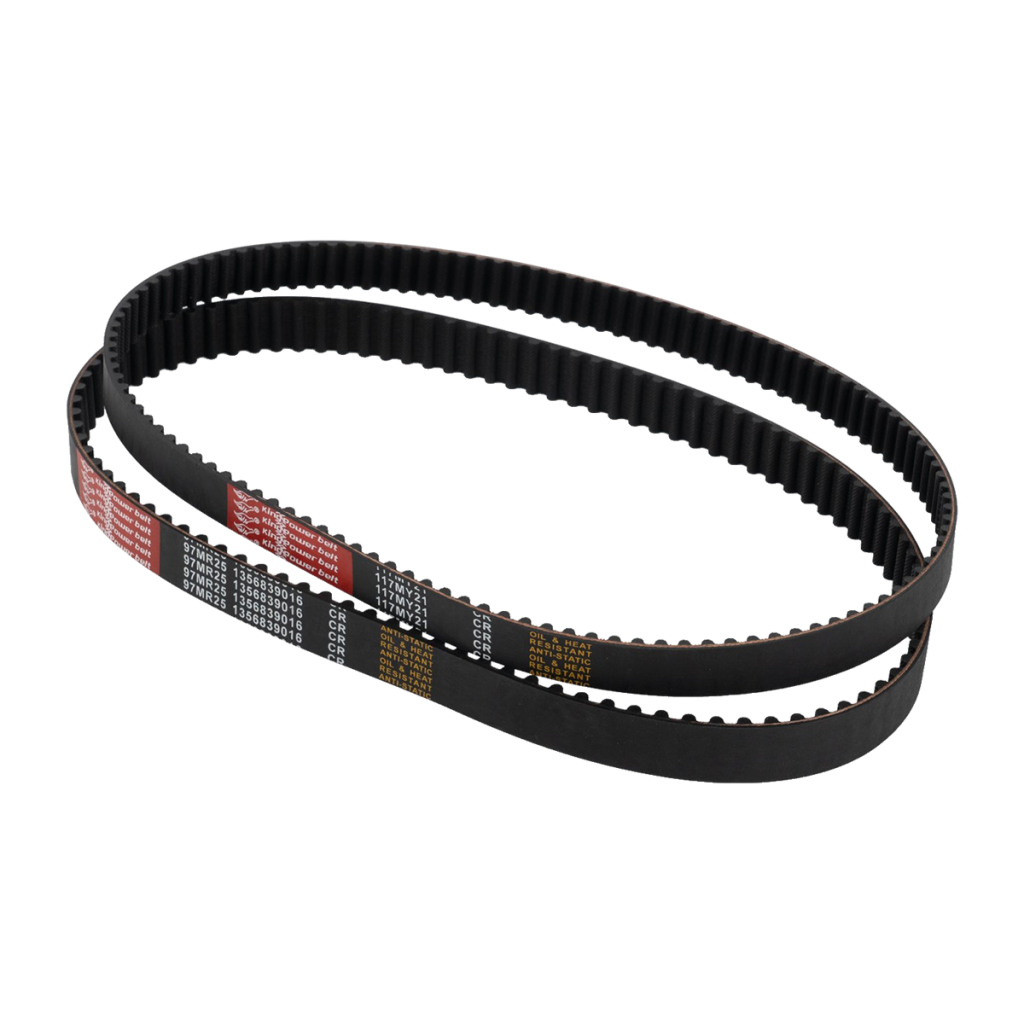

• Timing belts — molded teeth, glass-fiber tensile cord, for synchronous drives.
• CVT belts — for scooters and compact variable-speed drives.
• Custom industrial solutions — matched to your drawing or sample.

How to plan your visit

• Bring a sample or drawing. A worn belt, a CAD file, or a photo of the pulley tells us more than a written description.
• Note your operating conditions. Temperature range, load, speed, and any oil or chemical exposure change the compound we’d recommend.
• Share volumes and target price. It shapes whether we quote stock profiles or a custom build.
• Tell us your timeline. We can line up the right engineers and, if needed, a trial run.

We can usually arrange a workshop tour, a technical meeting, and a look at relevant samples in a single visit. If you can’t travel, a live video walkthrough covers most of the same ground. Wear closed-toe shoes for the floor, and if you need to share confidential drawings, ask about an NDA ahead of time.

Talking specs and custom solutions

The meeting after the tour is where the real work happens. Bring your market requirements and we’ll talk material choice (EPDM vs CR), cord type (polyester, aramid, glass), and profile. For OEM and private-label programs, we handle tooling, marking, and packaging to your spec.

Frequently asked questions

How long does a factory visit take?

Most run half a day: a workshop walk-through plus a technical discussion. Tight schedules can be shortened to the stations you care about.

Can you make a belt from my sample?

Yes. We reverse-engineer the profile, compound, and cord, then confirm with a trial batch before production.

Do you work with small orders?

We do, especially for custom or private-label programs — talk to us about minimums for your profile.

What documents come with a shipment?

A batch inspection report covering dimensions, tensile, and any agreed performance checks.

Bottom line

A factory visit is the shortest path to trusting a belt supplier. You’ll see the line, the materials, and the test bench — and leave with a clear picture of what we can build for you. Reach out and we’ll set a date.

The post Belt Factory Tour: What to See on a KingPower Visit appeared first on KingPower.

Most drivers don’t think about the belts under the hood until something starts squealing — or worse, until the engine overheats on the side of the road. Belts are cheap parts that do an expensive job. A worn serpentine belt can take out your alternator, power steering, and cooling at the same time. A failed timing belt can bend valves and wreck the engine. The good news: most belt failures are predictable if you know what to look for.

This guide covers the two belt systems found in almost every car, how long they really last, how to inspect them, and the common mistakes that shorten belt life.

First, Know Which Belt You’re Dealing With

Cars have two completely different belt systems, and the maintenance rules for each are not the same.

Accessory (drive) belts sit outside the engine and turn the parts that keep you moving and comfortable:

• The serpentine belt — one long ribbed belt that snakes around several pulleys to drive the alternator, power-steering pump, A/C compressor, and often the water pump.
• Older cars may use separate V-belts, one per accessory.

The timing belt lives inside the engine, behind a cover. It synchronizes the crankshaft and camshaft so the valves open and close at exactly the right moment. If it slips or breaks, the pistons and valves can collide. Many modern engines use a timing chain instead, which is lubricated by engine oil and generally lasts much longer — but chains are not maintenance-free either.

Why does the distinction matter? A serpentine belt failure is inconvenient and can leave you stranded, but a timing belt failure on an “interference” engine can destroy the motor. They also have very different replacement schedules.

How Long Do Belts Actually Last?

Forget “inspect and replace when it looks bad.” On modern belts, looks are misleading. The reliable approach is to follow a mileage-or-age schedule, whichever comes first.

These are industry norms, not a substitute for your owner’s manual. Some engines call for earlier changes; a few “wet” belt-in-oil designs run longer on paper but have caused trouble in practice. If you buy a used car and can’t confirm the timing belt was done, treat it as due.

Age matters as much as miles. Rubber hardens and the internal cords fatigue even when the car sits. A belt with only 40,000 miles but ten years under the hood can be just as risky as one that’s been driven hard. Severe use — towing, short trips, dusty or very hot climates, oil or coolant leaks — pushes the schedule earlier.

How to Inspect a Belt (Without Falling for the Cracks Myth)

Pop the hood, locate the belt, and look for:

• Glazing — a hard, shiny, heat-polished surface on the ribs. It means the belt is slipping and the rubber is hardening.
• Fraying or missing rib material along the edges.
• Rib separation — the V-ribs peeling away from the belt body. That’s structural failure.
• Misalignment — the belt riding off-center on a pulley.
• Tensioner and idler pulleys — any side-to-side wobble, grinding noise, or rough bearing feel means they’re due too.

Here’s the part most old advice gets wrong: for decades, the rule was “three cracks in three inches means replace it.” That applied to old neoprene belts. Almost every car built since the late 1990s uses EPDM rubber, which resists cracking. An EPDM belt can look perfectly fine and still be worn out, because it loses material from the ribs the way a tire wears down. Belt makers actually measure wear with a gauge that checks groove depth — not cracks. So on a modern belt, a clean visual check is not enough; follow the mileage/age interval and replace on schedule.

A good habit: glance at the belt at every oil change, but don’t trust looks alone. If the car is past its interval, replace it.

Warning Signs You Shouldn’t Ignore

• Squealing or chirping from the front of the engine, especially at startup or when the A/C kicks on. Usually slipping — worn belt, weak tensioner, or misaligned pulley.
• Battery warning light while driving — the alternator may be under-driven from a slipping belt.
• Heavy steering all of a sudden — power steering has lost assist.
• A/C stops blowing cold with no other symptom.
• Rapid overheating — if the water pump is belt-driven and the belt fails, coolant stops circulating within minutes. Pull over and shut off immediately.

The Belt Dressing Myth

If a belt squeals, the tempting fix is a can of belt dressing. Don’t. That stuff was made for old neoprene V-belts and is not approved by any modern belt manufacturer. On EPDM belts it can soften and swell the rubber, attract grit, contaminate pulleys, and hide the real problem — a worn belt or a failing tensioner. No belt maker recommends it.

For diagnosis only, a light mist of plain water from a spray bottle is safe: if the noise stops for a few seconds, the belt or alignment is the culprit; if it doesn’t change, the noise is a bearing. Water evaporates and leaves no residue. That’s the only liquid that belongs near a belt.

The real fix is mechanical: correct tension, proper alignment, and a fresh belt — plus the tensioner and idler pulleys while you’re in there.

Tension and Alignment Done Right

Most cars use an automatic tensioner that keeps pressure on the belt as it stretches. You generally shouldn’t need to adjust it — but you should replace it when the belt is changed, because tensioners wear out on roughly the same clock as belts. Same for idler pulleys.

If you have a manually tensioned belt (common on older cars and many industrial/equipment drives), the balance is real:

• Too tight loads the bearings in the alternator, pump, and tensioner, wearing them out early.
• Too loose lets the belt slip, glaze, and lose power.

On a timing-belt job, replace the belt, tensioner, idler pulleys, and often the water pump together. The water pump is frequently driven by the timing belt; doing it later means paying for the same teardown twice. It’s the standard, cost-effective way to do the job.

Keep the Belt System Clean

Oil and coolant are belt killers. A leak onto a belt softens the rubber and can shear the teeth (on a timing belt) or ruin grip (on a serpentine belt). If a belt is contaminated, degrease the pulleys and replace the belt — don’t try to clean it back to health. Also fix the leak; a new belt on a leaking engine won’t last.

Choosing the Right Replacement Belt

Not all belts are equal, and the difference shows up at 80,000 miles in the desert. When you replace one:

• Match the profile — correct width, rib count, and length for your application. A belt that doesn’t seat in the pulley grooves will slip from day one.
• Pick the right material — EPDM for most modern accessory drives; the spec your engine calls for on timing belts (often HNBR or similar high-heat compound).
• Buy from a source that controls quality — consistent compounding, cord placement, and dimensional accuracy are what keep a belt quiet and straight.

KingPower drive belts are built for automotive and industrial use — V-belts, timing belts, and poly-V (PK) belts made to match OEM profiles. If you’re specifying belts for a fleet, workshop, or equipment, getting the profile and compound right is the whole game.

FAQ

How often should I replace my serpentine belt?Most manufacturers suggest 60,000–100,000 miles or 5–7 years, whichever comes first. Check your owner’s manual.How often should I replace my timing belt?Commonly 60,000–120,000 miles or 5–10 years. It varies by engine; the manual is the authority. On interference engines, don’t go past it.Can I just look at the belt to see if it’s bad?On modern EPDM belts, not reliably. They wear by losing rib material, not by cracking. Follow the interval and use a wear gauge if you have one.Is belt dressing safe?No. It’s not recommended for modern belts and can damage them. Fix the cause instead.Should I replace the tensioner with the belt?Yes — tensioners and idler pulleys wear out around the same time. Replacing them together avoids a repeat job.My car has a timing chain, not a belt. Do I still need to worry?Chains last longer but aren’t forever. Listen for rattles at startup and keep up with oil changes; a stretched chain or failed tensioner still needs repair.

The Bottom Line

Belts are among the cheapest insurance on your vehicle. Know which system you have, follow the mileage-or-age schedule, don’t trust a casual look on modern belts, skip the belt dressing, and replace the related pulleys when you’re in there. Do that, and a $30 belt rarely turns into a $3,000 repair.

The post Automotive Belt Maintenance Guide: Intervals & Inspection Tips appeared first on KingPower.

1. Pick the belt that actually fits the job

This is where most premature failures are decided, before the machine even runs. Match the belt type to what the drive has to do:

• Wrapped or cogged V-belts for general fractional to heavy power transmission. Cogged versions flex better on small pulleys and run cooler. See our cogged V-belt range.
• Timing / synchronous belts when you cannot afford any slip and need the shafts locked in phase. See timing belts.
• Poly-V (multi-ribbed) belts for compact, high-rpm accessory drives like an engine front end. See Poly-V belts.
• Special belts for heat, oil, or food-grade needs. See special belts.

Then size it with the right service factor for load, speed, and duty. An undersized belt is loaded past what it was built for, and it will tell you by failing early. If you are not sure which profile and length you need, send us the pulley diameters, center distance, power, and rpm and we will size it. Read our belt failure analysis guide if you are replacing a belt that already failed.

2. Get the tension right

If you change only one thing, change this. Tension is the single biggest lever on belt life.

• Too loose: the belt slips. Slip makes heat, heat glazes and hardens the surface, and a slipping belt walks off the pulley. You lose power and you cook the belt.
• Too tight: you overload the bearings and stretch the internal cords. The belt rides hard, the bearings wear out early, and the cords fatigue and break. Over-tension shortens the life of the belt and the machine.

Use the manufacturer’s tension spec, not your thumb. On a V-belt that usually means a deflection measurement or a tension gauge; on a timing belt it means a specified deflection with the correct span. New belts stretch in a little, so re-check tension after the first shift or two of running and touch it up once. After that, check on a schedule, not by ear.

3. Align the pulleys

Pulleys have to sit in the same plane. A small misalignment is enough to wreck a belt because the load lands on one flank instead of being shared across the whole rib or groove. You get edge wear, the belt walks to one side, it gets noisy, and the edges fray.

Check it with a straightedge laid across the pulley faces. If the faces are not coplanar, shim or reposition until they line up. On a fast drive, even a millimeter or two across the span matters. It takes minutes and prevents a failure that otherwise shows up weeks later.

4. Keep the belt and grooves clean

Oil and grease are the enemy of a rubber belt. They soften and swell the rubber, and what was a gripping surface turns into a slipping, rapidly wearing one. Wipe oil off pulleys as soon as you see it, and keep solvent and lubricant away from the belt path. That also means skipping belt dressing: the spray is a short-term stickiness that can glaze the surface and trap grit, and it never fixes the reason the belt was slipping in the first place.

Dust and abrasive grit act like sandpaper on the flanks, so guard the drive where the environment is dirty, and blow or wipe the grooves during scheduled maintenance. Our failure analysis guide walks through what contaminated and abraded belts look like.

5. Mind the pulley condition

The belt is only as good as the groove it runs in. A worn, glazed, or grooved-out sheave changes the contact geometry, so the belt slips and loads unevenly. Rust, burrs, or damaged flanges will cut a belt. Check grooves with a wear gauge and replace a worn pulley rather than fighting it with a new belt. Also respect the minimum pulley diameter in the belt spec: a pulley that is too small bends the belt sharply on every revolution, and that bending fatigue is what opens cracks at the base of the ribs.

6. Don’t overload, and don’t mix old and new

Stay inside the design load. Overload is just another word for extra heat and fatigue, and heat is what ages a belt fastest. If the drive is routinely slipping or the motor is near its limit, the answer is a bigger belt, an extra rib, or a different ratio, not a tighter one.

In a multi-belt drive, fit a matched set. A new belt next to stretched old ones carries most of the load because it sits higher in the groove, so it fails while the old ones look fine. Replace them together so they share the load and wear out together.

7. Store and inspect properly

Belts age even on the shelf. Rubber hardens and loses flexibility over time, especially near heat, sunlight, ozone (electric motors and welders are sources), or solvents. Store belts cool, dry, and dark, and use stock on a first-in-first-out basis so nothing sits for years. Don’t hang V-belts on a small peg or hook, which distorts the shape; keep them in the original coil or hang them on a wide mandrel.

For inspection, tie it to running hours, not just the calendar. A five-minute look should cover:

On a critical drive, replace at the first sign of rib-base cracking rather than waiting for the break. A planned change during a stop is cheap; an unplanned one at full speed is not.

FAQ

How long should a power transmission belt last? There is no single number. A V-belt running at the right tension in a clean, moderate-temperature drive often runs for years and tens of thousands of hours. The same belt in a hot, dusty, misaligned, or overloaded drive can fail in months. Setup and environment decide the life far more than the belt brand does.

Can I use belt dressing to stop a slipping belt? Generally no. Belt dressing is a temporary patch that can glaze the surface or trap grit, and it does nothing about the real cause. Fix the cause instead: correct the tension, realign the pulleys, clean the oil off, or resize the drive for the load.

Should I replace one belt or the whole set in a multi-belt drive? Replace the set. In a multi-belt drive the belts share the load, and a new belt paired with stretched old ones carries most of it and fails early. Fit a matched set so they wear evenly.

How often should I check belt tension? Re-check tension after the initial run-in (many belts stretch a little in the first shift or two), then on a schedule tied to how critical the drive is, weekly to monthly, and any time you hear squeal, see heat, or find the belt has slipped on the pulley.

Does a more expensive belt always last longer? Not by itself. A better belt, with the correct material such as EPDM for heat and sound construction, helps, but only if it is the right type and is installed correctly. A modest belt on a well-set-up drive will outlast a premium belt on a badly aligned, over-tensioned one.

The post How to Extend the Service Life of Power Transmission Belts appeared first on KingPower.

What a “PK belt” actually is

PK is a profile code, not a brand. It describes a multi-ribbed belt (also called a Poly-V or serpentine belt) where many small V-ribs run lengthwise along a single backing. “PK” specifically means a rib pitch of 3.56 mm and a rib angle of roughly 40 degrees. It is the size you will find on almost every automotive front-end accessory drive (FEAD) and on plenty of industrial machines. Smaller PJ belts (2.34 mm pitch) show up in appliances and light equipment; larger PL belts (4.7 mm pitch) carry heavier loads.

The appeal is simple: one belt wraps several pulleys and drives the alternator, water pump, air-conditioning compressor, and power steering off a single path. Because the ribs are thin, the belt bends tightly around small pulleys without losing grip. That same thin-rib geometry is also where the trouble starts when the belt is built the wrong way.

Why PK belts crack and slip

These are two different problems with two different causes, and mixing them up is how people keep buying the wrong fix.

Cracking

Cracking is almost always a story about heat and age. In an engine bay the belt bakes at well over 100°C for years, and ozone plus the occasional oil leak finish the job. The rubber hardens, loses stretch, and fine cracks open along the edges of the ribs. A belt that was poorly made comes into the world with cut rib edges that are already the weak spot, so it cracks early. Wrong tension makes it worse: too tight and the cords fatigue, too loose and it slips and overheats (more on that below).

Slippage

Slippage is usually tension, contamination, or mismatch. The belt is under-tensioned, there is oil or grease on the pulley, the rib surface has worn smooth, the pulleys are misaligned, or the drive is simply asked to carry more than it was sized for. The dangerous part is the loop it creates: a slipping belt runs hotter, and heat is exactly what drives the cracking you were trying to avoid.

The usual fix that doesn’t work

Most teams reach for the obvious move: swap the belt and move on. But if a sound belt fails again in a few months, the part number was rarely the issue. The weak points are baked in during manufacturing, and no amount of re-ordering the same item changes that.

Before you blame the belt, check the basics: correct tension, clean and aligned pulleys, and the right size. A good belt on a badly set-up drive will still fail. Fix the drive first, then fix the belt.

Layered build vs one-piece molding

Here is the part that actually matters. There are two broad ways a PK belt gets its ribs, and they are not equal.

The conventional way: build flat, then grind the ribs

A common older method builds the belt as a flat slab (rubber + tension cords + fabric), vulcanizes it, then grinds or cuts the rib profile into the backing. Grinding gets the shape close, but it leaves a few problems:

• The rib edges are cut surfaces, not molded ones, so they are rougher and more likely to start cracking.
• Tolerances on rib angle and pitch run looser, so the belt does not seat perfectly on the pulley and is more prone to slip and vibrate.
• Any secondary bonding between layers is a place delamination can begin after repeated bending and heat.

The one-piece way: form the ribs in the mold

One-piece (sometimes called unibody or compression) molding loads the compound and the cords into a precision mold and cures the whole belt in a single shot. The ribs are formed, not cut. That single change removes the weak points:

• No cut rib edges, so there is no ready-made line for cracks to follow.
• The cords sit evenly through the body, so tension is uniform instead of concentrated.
• Rib dimensions stay consistent, so the belt fits the pulley cleanly and does not slip.
• There is no secondary bonding layer to delaminate.

You can feel the difference on the bench. Bend a conventionally ground belt sharply and you will often see fine cracks open along the rib edges; bend a one-piece molded belt the same way and it stays smooth. (That is a quick shop-floor check, not a substitute for a proper fatigue test rig, where real belt life is measured under load.)

The materials that make it last

The build method gets most of the attention, but the rubber and cords do the rest of the work.

• EPDM rubber is the standard for under-hood belts. It resists heat, ozone, and oil far better than natural or neoprene rubber, and a typical compound is good for roughly 120°C of continuous service, with some formulations rated a bit higher for short peaks. That is why it dominates automotive FEAD belts.
• Cords carry the load. Polyester is the common all-round choice; fiberglass is low-stretch and stiff; aramid is the strongest and lowest-stretch option but costs more. The right cord is the one that matches your load and speed, not the most expensive one.
• A fabric cover on the ribs adds abrasion resistance and keeps friction stable on the pulley.

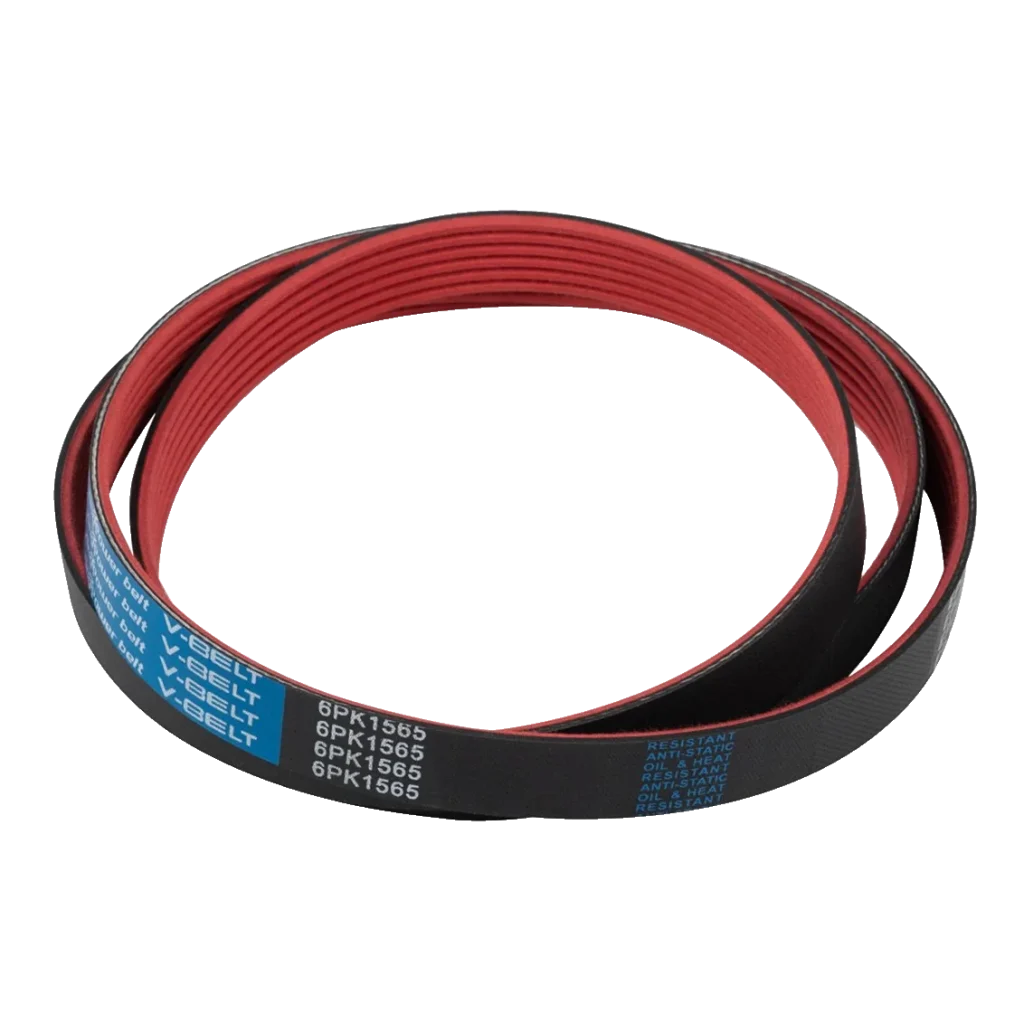

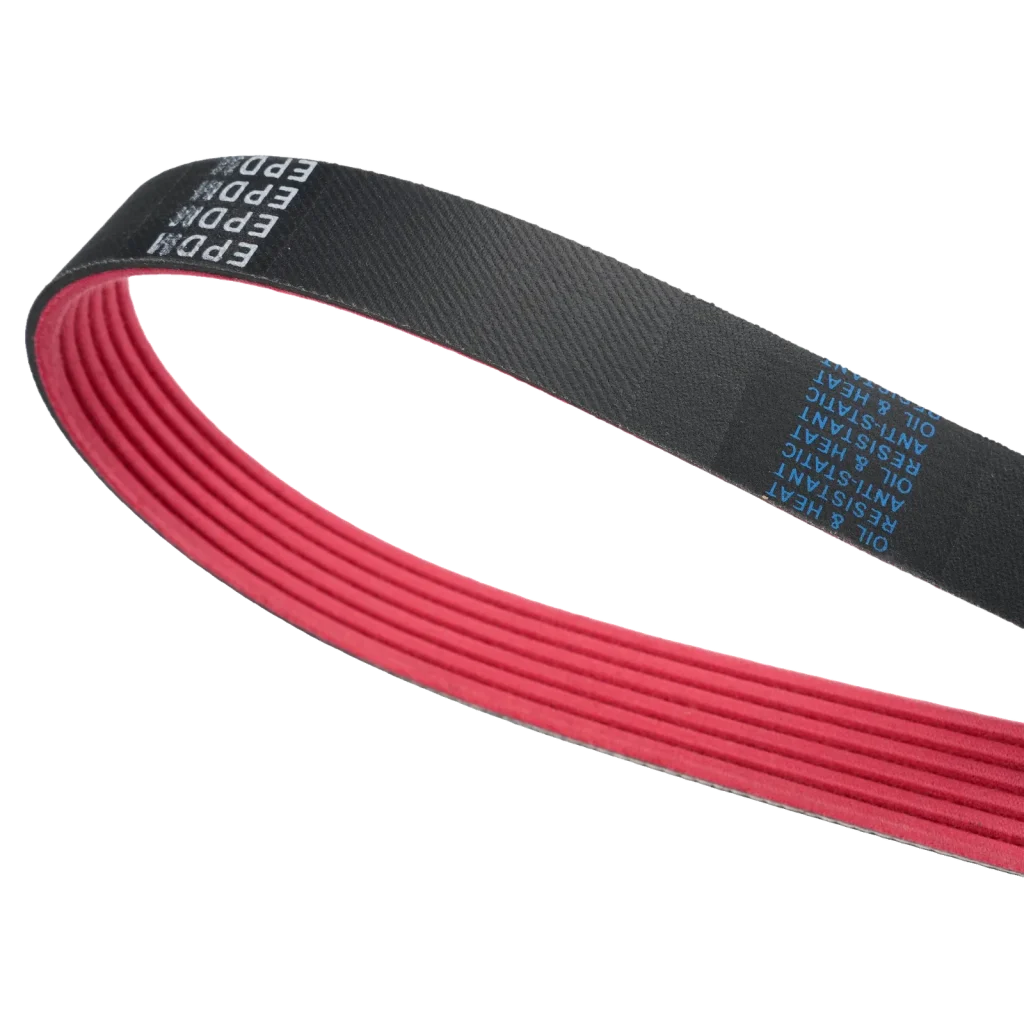

Where colored / custom PK belts fit in

Not every PK belt is plain black. Custom-colored belts (think a black backing with red, green, or beige rib surfaces) are used for automotive tuning, brand identification, and OEM color-coded replacement programs, where a belt has to be matched by sight on a crowded engine. They are made the same way, with the color in the rib compound rather than a coating that would wear off.

For reference, a typical custom program runs 2 to 12 ribs with lengths from about 400 to 3,000 mm, and accepts custom sizes and logos. See the colored multi-ribbed PK belt product page for a concrete example of the sizing and options available.

How to pick a belt that won’t quit early

If you only remember a few things, remember these:

1. Confirm the profile and size. PK, PJ, or PL, plus the correct length and rib count. A belt that is the wrong pitch will never seat right.
2. Ask how it is built. One-piece molded beats a ground-rib build for life. If a supplier cannot tell you, that is your answer.
3. Match the rubber to the heat. EPDM for under-hood and hot industrial use; don’t put a belt that hates heat into a hot drive.
4. Choose the cord for the job. Polyester for general use, aramid where stretch must be near zero.
5. Set the drive up properly. Correct tension, clean and aligned pulleys, right-size the drive. The best belt still fails on a badly set-up machine.

FAQ

What does PK mean on a belt?

PK is a rib-profile code for multi-ribbed (Poly-V / serpentine) belts. The PK profile has a 3.56 mm rib pitch and about a 40-degree rib angle, and it is the size most used on automotive front-end accessory drives. Smaller PJ and larger PL profiles exist for lighter or heavier loads.

Why do PK belts crack?

Most cracking comes from heat and age: engine-bay heat, ozone, and oil all harden the rubber until it loses flexibility. Add the wrong tension, a worn or misaligned pulley, or simply old age and fine cracks open along the rib edges. A belt that was poorly made with cut rib edges fails sooner because those edges are already the weak spot.

Why does a PK belt slip?

Slippage is usually under-tension, oil or grease on the pulley, worn rib surfaces, misalignment, or asking the drive to carry more load than it was sized for. When the belt slips it runs hotter, which speeds up the very cracking you are trying to avoid.

Does one-piece molding really make a PK belt last longer?

It removes the weak points that cause early failure. In a one-piece molded belt the ribs are formed in the mold in a single cure, so there are no cut rib edges and no secondary bonding layer where delamination starts. The cords sit uniformly in the rubber, the rib dimensions stay consistent, and the belt seats cleanly on the pulley. That consistency is what keeps it from cracking and slipping early.

What temperature can an EPDM PK belt handle?

A standard EPDM compound is good for roughly 120°C of continuous service, with some formulations rated a bit higher for short peaks. If the belt lives in a hot, oily engine bay, EPDM is the usual choice because it resists heat, ozone, and oil far better than natural or neoprene rubber.

Need a PK belt that is actually built to last?

Tell us your profile (PK/J/P/L), rib count, length, and operating temperature, and we will match a one-piece molded EPDM belt with the right cords. Contact us or browse our Poly-V / PK belt range.

Related reading: 2026 transmission belt trends · Rubber vs PU timing belts

The post PK Belt Cracking & Slippage: One-Piece Molding Ends Premature Failure appeared first on KingPower.
