Timing Belts

Industrial CR Rubber Timing Belt

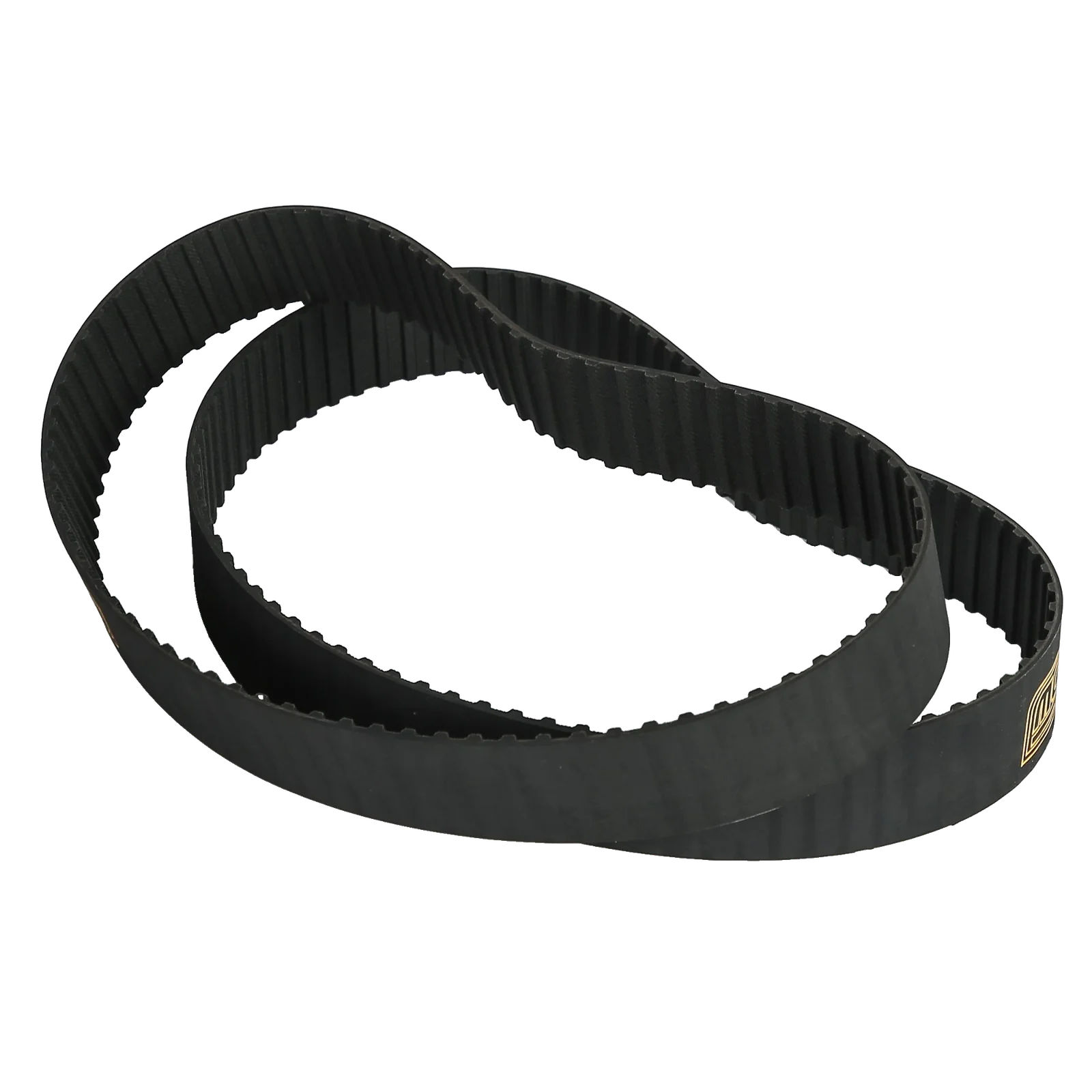

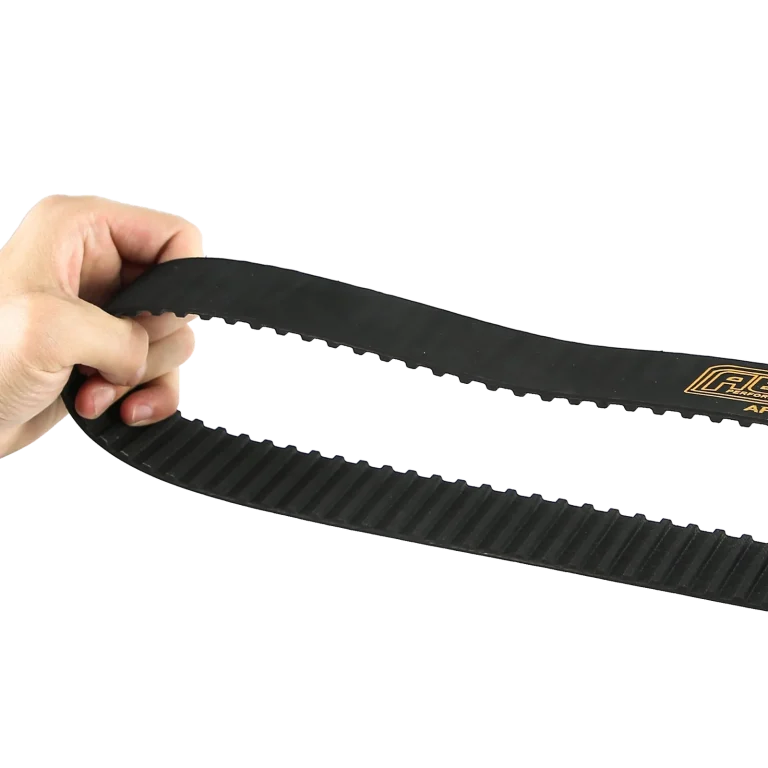

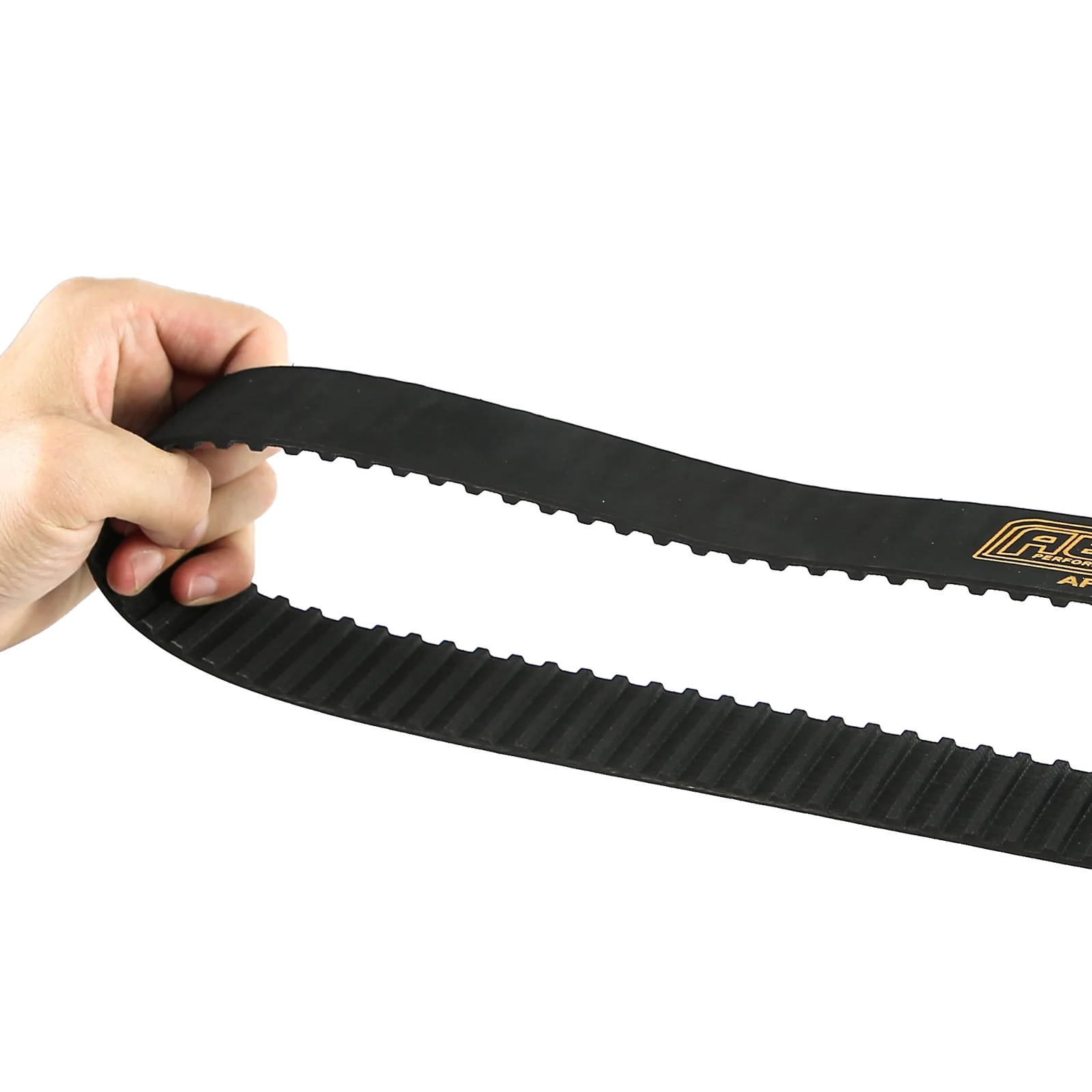

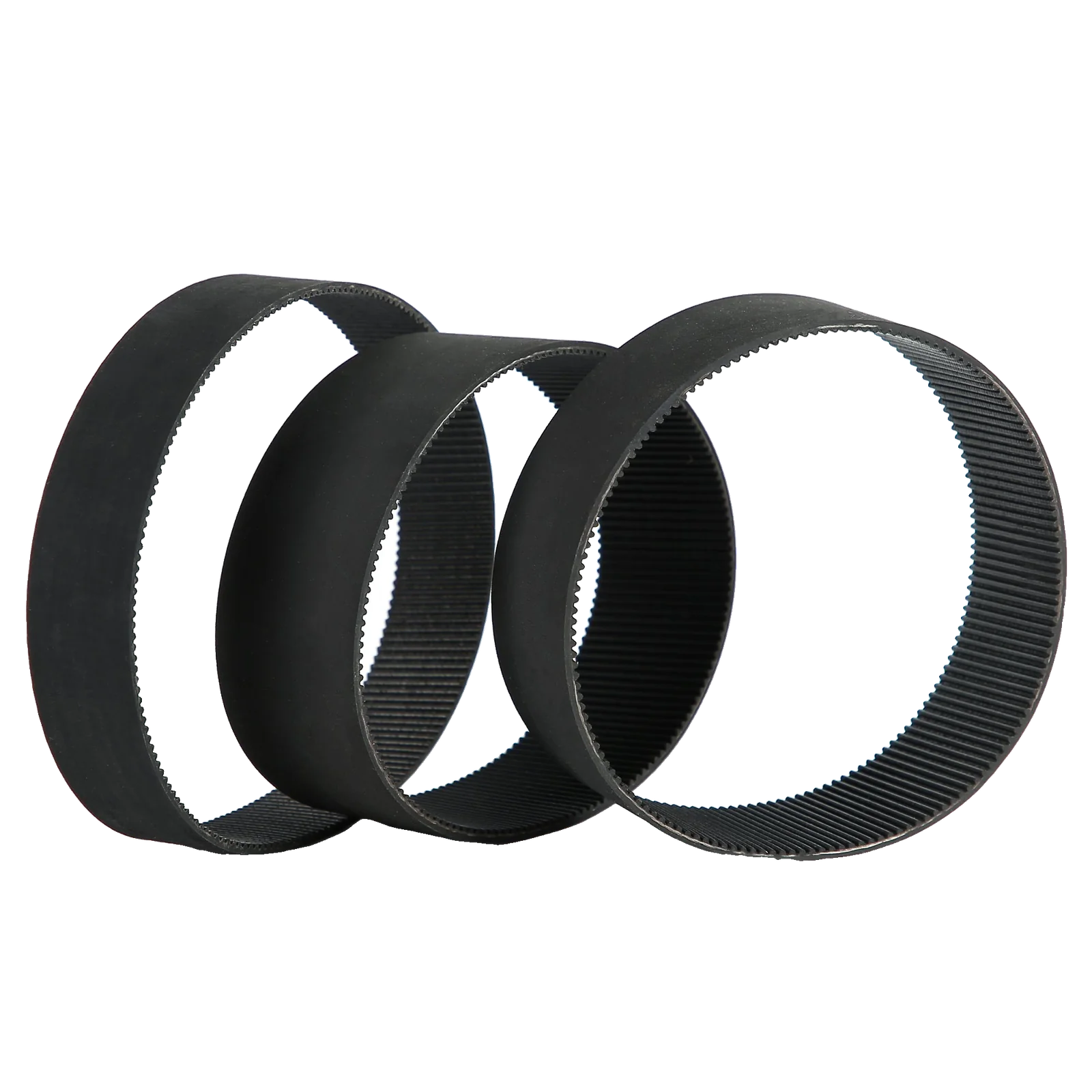

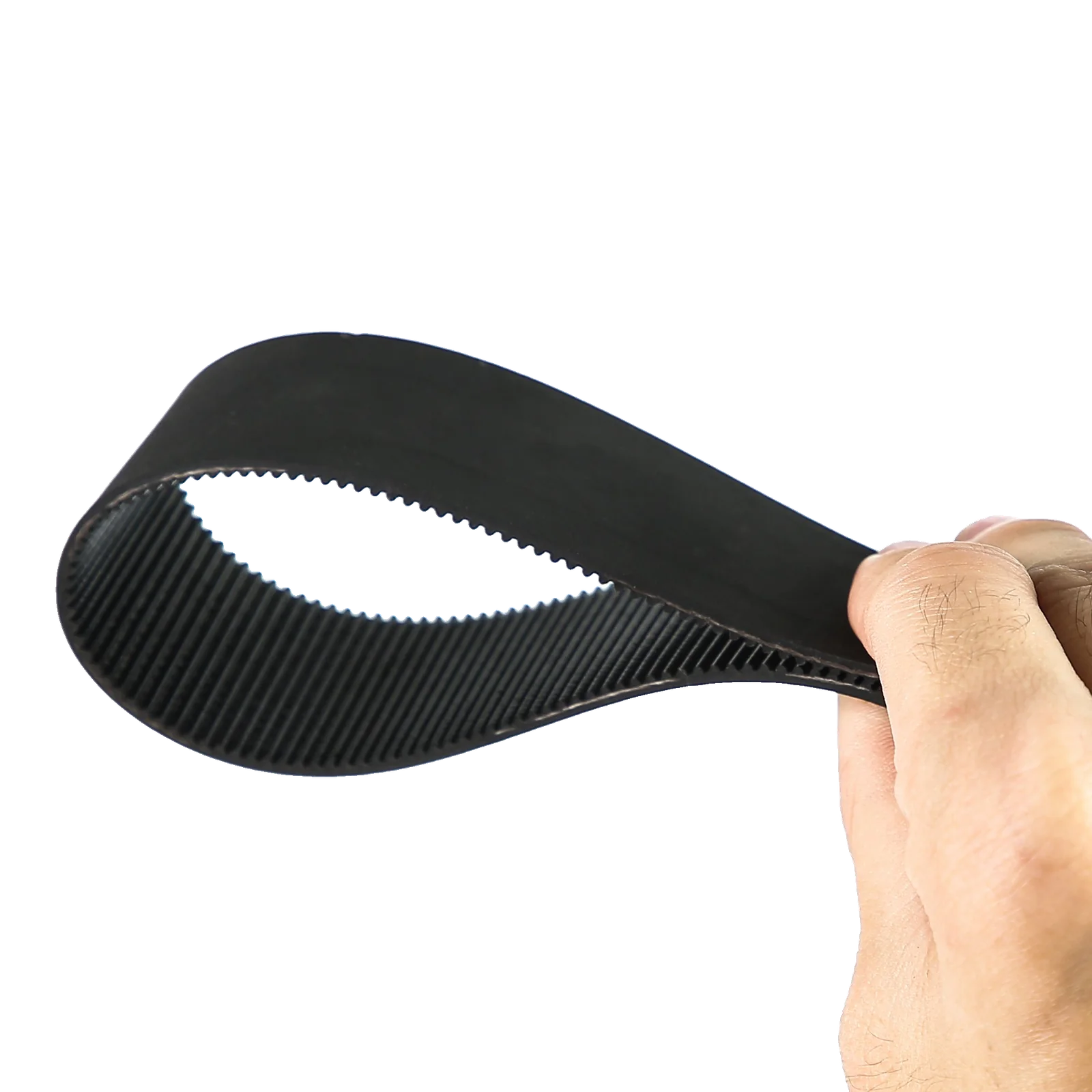

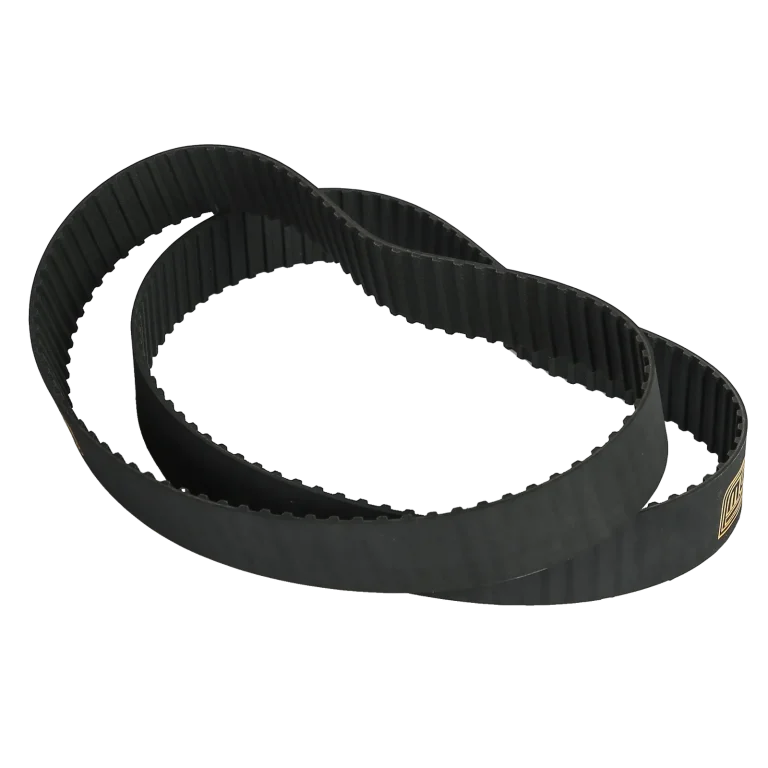

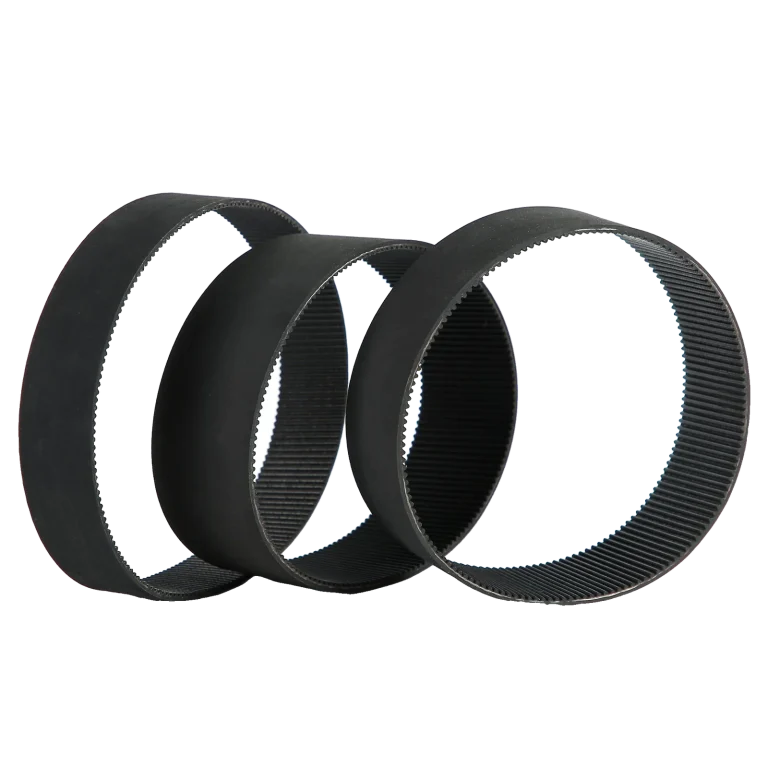

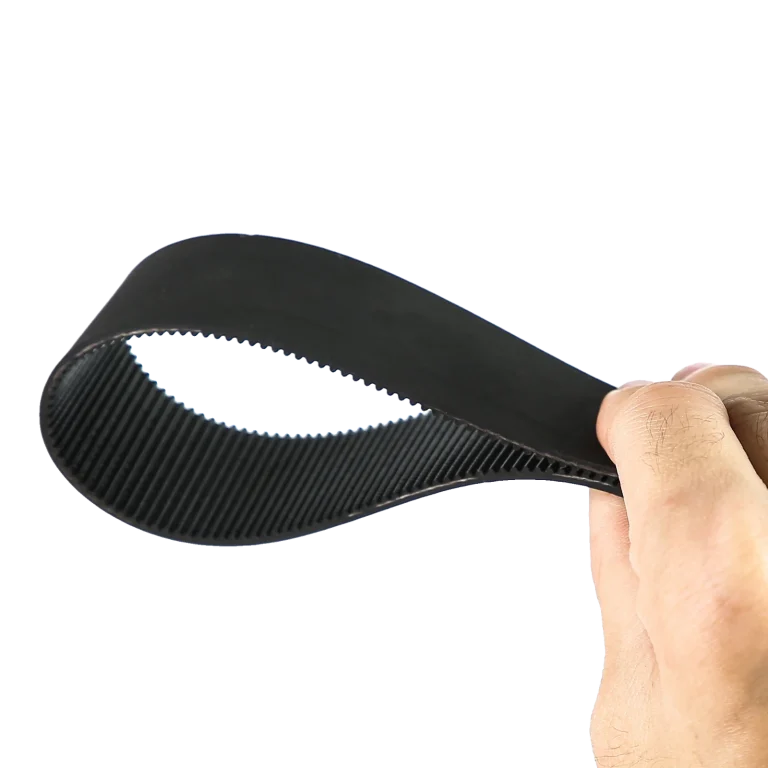

Heavy-duty neoprene (CR) rubber timing belts with gold-branded edge marking, designed for high-torque industrial machinery, conveyor systems and large-scale manufacturing equipment.
  • PROFILE
    HTD / STD / T / AT Series
  • MATERIAL
    CR / HNBR /EPDM
  • Tensile Cord
    Fiberglass / Aramid (Kevlar) / Polyester
  • OEM / ODM
    Custom Width & Teeth Accepted
Get A Quote
Chat on WhatsApp
Download Datasheet (PDF)
Series HTD / STD / T / AT / RPP
Body Material CR (Chloroprene) / HNBR / EPDM
Tensile Cord Fiberglass / Aramid (Kevlar) / Polyester
Tooth Facing Fabric Nylon (PA66)
Tooth Profile HTD 3M/5M/8M/14M/20M, STD S3M/S5M/S8M/S14M, T5/T10/T20, AT5/AT10/AT20, RPP5/RPP8
Pitch 3 / 5 / 8 / 10 / 14 / 20 mm
Width Range 10 – 100 mm (customizable)
Teeth Number Custom per drawing
Length Custom per drawing
Working Temp. CR: -30°C ~ +100°C; HNBR: -40°C ~ +150°C
Features Positive drive, no slip, low noise, wear-resistant, oil & heat resistant
Applications CNC machines, packaging machinery, textile machinery, robotics, 3D printers, automation equipment
OEM / ODM Custom size, profile, coating, and logo accepted

  • Precision Motion Control

    Engineered tooth profile ensures accurate positioning for automation and CNC systems.

  • Low Stretch Cord

    Fiberglass reinforcement maintains belt length stability under dynamic industrial loads

  • Oil & Heat Resistant

    CR / HNBR compounds withstand harsh factory environments and temperature cycles.

Typical Applications

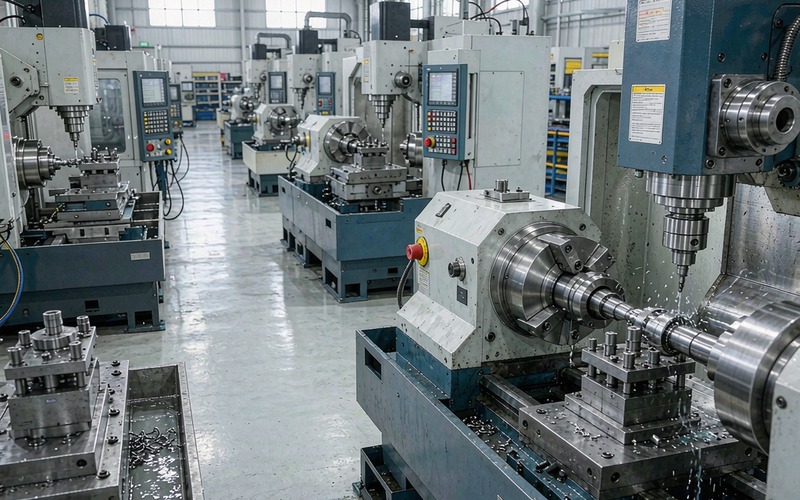

  • Machine Tools & CNC Machining

    Industrial timing belts provide reliable power transmission for lathes, milling machines, and CNC machining centers, ensuring precise spindle positioning and smooth cutting operations.

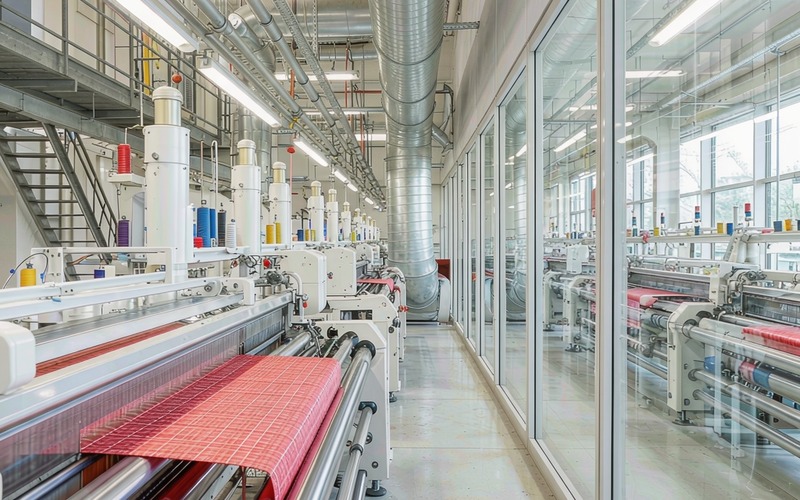

  • Textile Machinery

    In weaving, spinning, and knitting machines, timing belts synchronize multiple rollers and looms, delivering consistent tension and high-speed operation for quality fabric production.

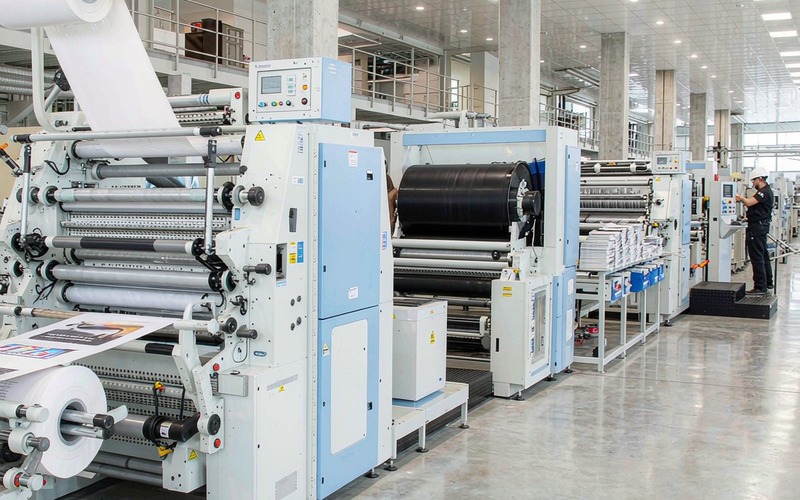

  • Printing & Packaging Equipment

    Printing presses, labeling machines, and carton sealers depend on timing belts for accurate registration and synchronized feeding, improving

Frequently Asked Questions

Everything you need to know about our V-belts, timing belts, ribbed belts, and wrapped belts. Can't find the answer you're looking for? Reach out to our team for a quick quote.

Get A Quote

What is the minimum order quantity (MOQ)?

Our standard MOQ is 50 pieces per size/specification for standard belts. For customized orders with private branding or special packaging, MOQ starts at 1,00 pieces. We also support trial orders for new customers to verify quality.

How do I choose the right belt type and size?

Share your application (engine, compressor, conveyor, etc.), pulley diameter, speed, and load requirements. Our engineers will recommend suitable V-belts, timing belts, ribbed belts, or wrapped belts accordingly, and provide cross-reference support for OEM part numbers.

Which quality standards do your belts meet?

Our belts are manufactured under ISO 9001 quality management and meet international standards such as RMA/MPTA, DIN 7753, and ISO 1813. Material options include chloroprene rubber (CR) and hydrogenated nitrile rubber (HNBR) for high-temperature applications.

How long does sampling and mass production take?

Standard samples are ready within 5-7 working days; custom samples take 7-12 days. Mass production lead time is typically 15-25 working days depending on order quantity and specifications.

What is your warranty and after-sales policy?

We provide a 12-month warranty against manufacturing defects. If any quality issue occurs under normal use, we offer free replacement or refund after verification. Technical support is available throughout the product life cycle.
